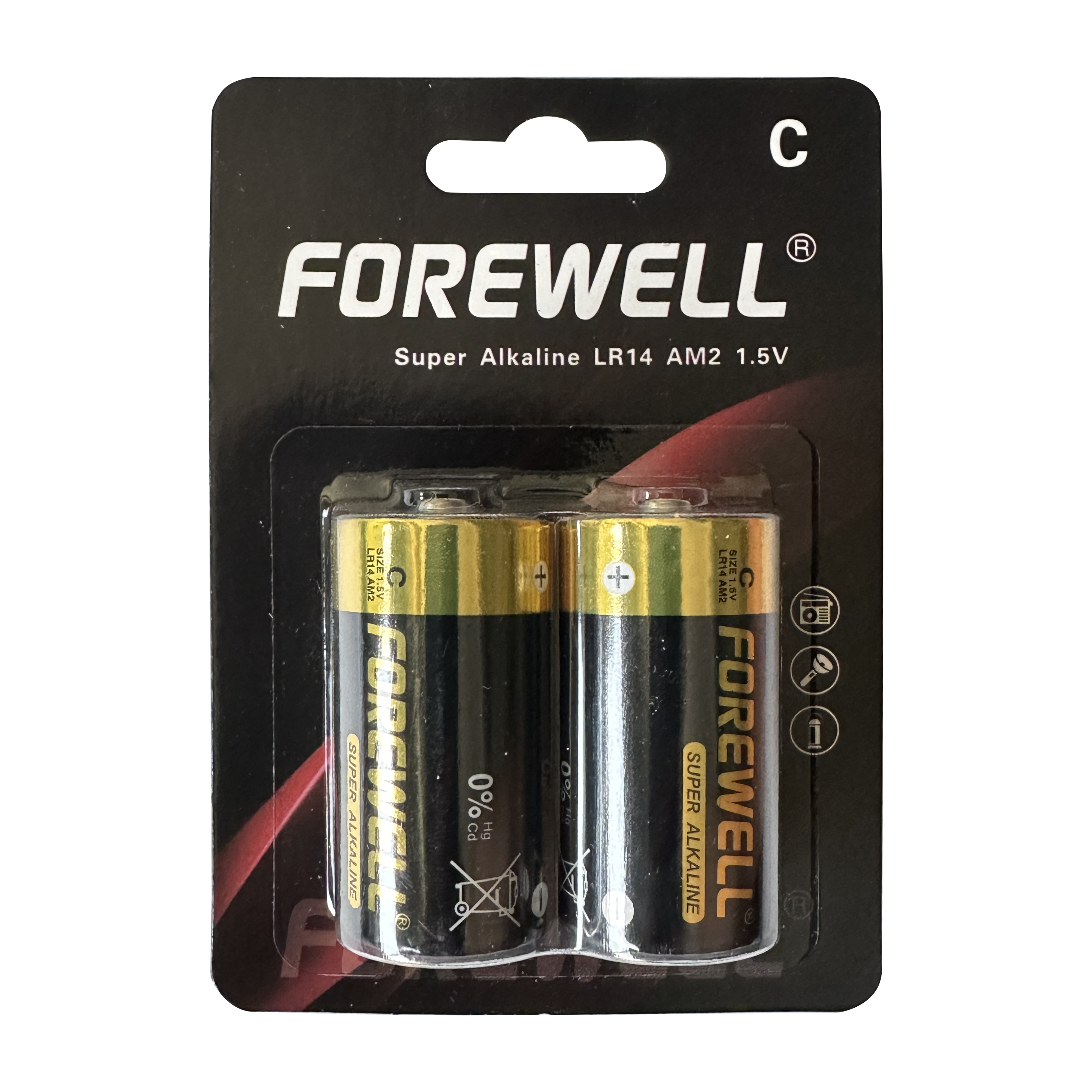

LR14/AM2/C SIZE Alkaline Battery
PRODUCT DESCRIPTION
Battery shall be clean and have no dirt, no leakage, and no deformation which may affect their performance and actual use and shall have clearl visible markings.
High drain electrical application: Digital cameras, PDA, CD/DVD players, shavers, flashlight, toys...
a.Mercury and Cadmium Free
b.Plus Leakage Protection and More Power
c.The Ideal application of Medium Drain Device
PACKAGE:
| TYPE | DIAMETER | HEIGHT | WEIGHT | CAPACITY | TESTING CONDITION |
| LR14 | 25.00~26.00mm | 49.00~50.00mm | 70.2g | 8000mAh | 25mA,24h/d,20℃,e.v.=0.8V |
| TYPE | PACK | INNER BOX | CTN | MEASUREMENT | G/W |
| Blister Packing | |||||
| LR14 / C / 1.5V | 2B / card | 12 cards | 96 cards | 397 x 304 x 193 mm | 15.2 kgs |
| Shrink Packing | |||||
| LR14 / C / 1.5V | 2S / shrink | 24 pcs | 192 pcs | 337 x 235 x 136 mm | 14.1 kgs |
Discharge test (service life)
| Applications | Load | Daily Period | Cut off Voltage | Initial | After 12 months storage |
| Toy | 3.9Ω | 1h/d | 0.8V | 23.5h | 22.0h |
| Portable lighting | 3.9Ω | 4m/15m,8h/d | 0.9V | 21.7h | 20.2h |
| Portable stereo | 400mA | 2h/d | 0.9V | 13.3h | 12.0h |
Remark: Test environment:20±2℃,55%±20%R.H
