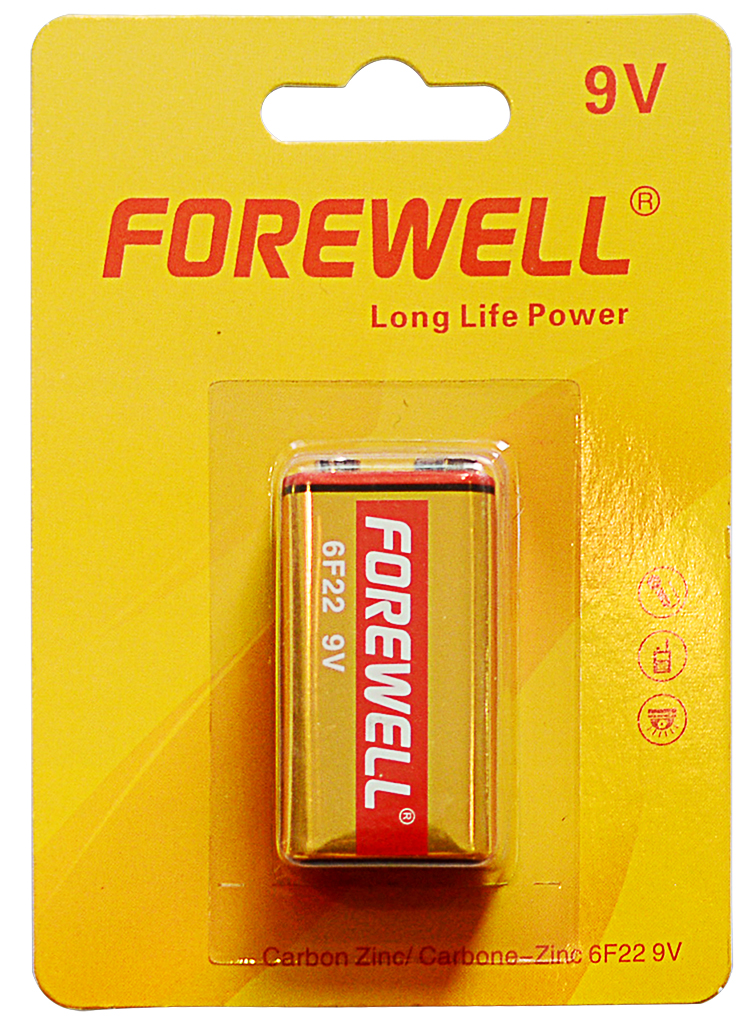

6F22 9V Carbon Zinc Battery
PRODUCT DESCRIPTION
6F22 9V Heavy duty battery
Calculators, flashlights, clocks, radios, remote controls,toy... ( Not recommended for high drain devices, digital cameras, CD players, MP3 players, etc.)
a.Mercury and cadmium free
b.Safe, dependable and more power
c.Environmentally friendly and long shelf life in storage
d.Long-lasting and cost-effective
PACKAGE:
| TYPE | DIAMETER | HEIGHT | TEST MODE | CUT-OFF | DURATION | WEIGHT |
| 6F22 / 9V | L(24.5~26.5)mm | 46.5~48.5mm | 620Ω,2h/d | 5.4V | 210min | 35.7g |
| W(15.5~17.5)mm | ||||||
| TYPE | PACK | INNER BOX | CTN | MEASUREMENT | G/W | |
| Blister Packing | ||||||
| 6F22 / 9V | 1B / card | 30 cards | 240 cards | 391 x 299 x 327 mm | 11.5 kgs | |
| Shrink Packing | ||||||
| 6F22 / 9V | 1S / shrink | 20 pcs | 360 pcs | 291 x 237 x 179 mm | 13.6 kgs |
Discharge test (service life)
LOAD | 620Ω | 620Ω | 180Ω | 180Ω |
DISCHARGE MODE | 24h/day | 2h/D | 30min/D | 24h/day |
END VOLTAGE | 5.4V | 5.4V | 4.8V | 4.8V |
INITIAL | ≥20.5h | ≥28.5h | ≥480min | ≥4.5h |
AFTER 12 MONTHS STORAGE | ≥16.4h | ≥22.8h | ≥384min | ≥3.6h |
